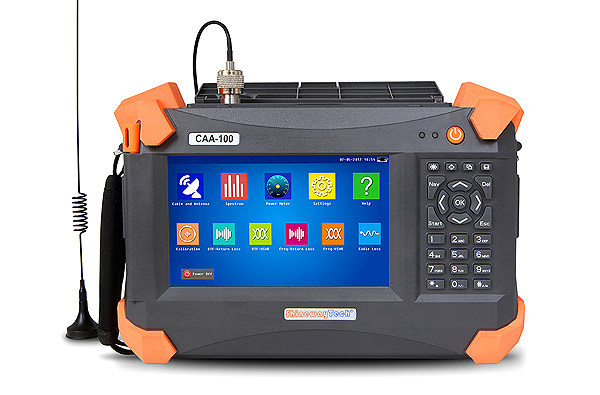

CAA-100A

Cable & Antenna Analyzer + Spectrum Analyzer

ShinewayTech® CAA-100A Cable & Antenna Analyzer with spectrum analyzer can test DTF / Frequency Return Loss, VSWR, Cable Loss, RF Power and Spectrum.

CAA-100A integrates two functions: cable and antenna measurements and spectrum analysis. Cable and antenna analyzer with frequency range 1MHz – 6GHz and 60dB dynamic range is suitable for 2G / 3G / 4G / 5G / WLAN / WiFi / WiMAX systems etc.

The spectrum analysis module supports frequency of 300MHz-4GHz and 100dB dynamic range. CAA-100A series is an essential measuring instrument for testing new generations of wireless network and indoor signal distribution.

Features

●Cable and Antenna analyzer, Spectrum Analyzer, Terminal RF Power Meter and RF In-Line Digital Power Meter Function

●Cable and Antenna analyzer function: Frequency range:1MHz to 6GHz, Dynamic Rang up to 60dB

●Spectrum Analyzer function: Frequency range:300MHz to 4GHz, Dynamic Rang up to 100dB

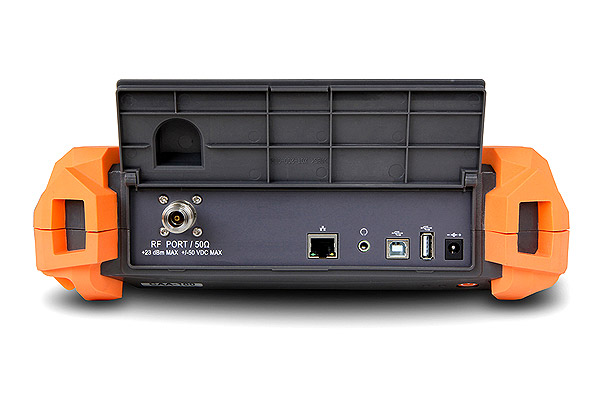

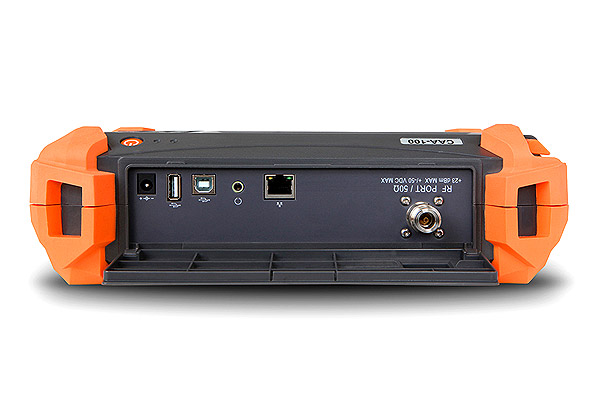

●Cable and Antenna analyzer function and Spectrum Analyzer function share port test

●Suitable for 2G / 3G / 4G / 5G / WLAN / WiFi / WiMAX system etc.

●Intelligent limit /marker /curve calculations

●More than 8 hours long battery life

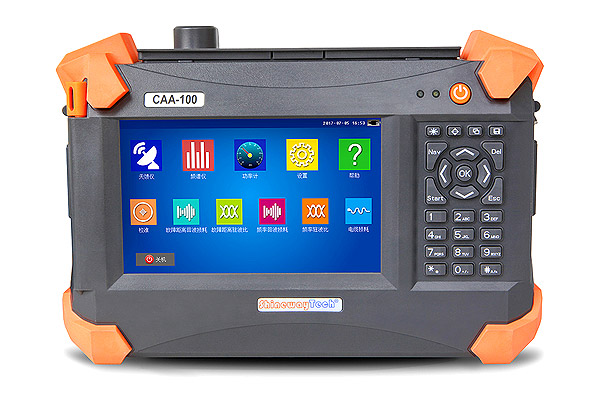

●7 inch color LCD touch screen

●Optimized batch file management: edit/delete/filter

●Excellent Man-Machine interface for easy operation

1. Multiple Standard Measurement Mode

Spectrum, Power Meter, Distance-to-faultTo-Fault (DTF) Return Loss, DTF Voltage Standing Wave Ratio (VSWR), Frequency Return Loss, Frequency VSWR, Smith, Phase and Cable Loss testing. Main interface designs beautifully, user operation is convenient.

2. Optional Power Meter

USB high-precision power meter probe not only can connect the instrument to test and display the power, but also can connect the PC to analysisanalyze the result, which is greatly satisfyvery useful for user.

Terminating Power Meter and In Line Digital Power Meter can test a variety of signalsignals, which can meet the demand of different level users.

3. Intelligent Analysis and Judgment of the Trace

CAA-100A can analyze single or multi-segment limit lines, markers and the curve calculation accurately.

4. Convenient and Precise Calibrator:

(1) ECAL Electronic Calibrator (Standard)

(2) 1-Port “T-type” Calibration Kit (Optional)

It can calibrate precisely and conveniently. When the calibrated data points decrease, it is no need to recalibrate, which will increase the service efficiency.

Electronic calibrator ECAL provides consistent calibration results, and removes the possible error of manual calibration.

5. Instant Switching the Return Loss and VSWR

CAA-100A Cable & Antenna Analyzer’s function can test the return loss and VSWR simultaneously, and switch the result instantly.

6. Optimized Batch File Management Function

CAA-100A file filter function is easy to implement batch editing and analysisanalyzes the results.

7. Field Calibration Cable and Obtaining the Parameters

CAA-100A can supply user input the cable parameters (propagation velocity, cable loss) or choose a known cable type. If user knows nothing about the cable parameters, he can make a field calibration by the equipment cable Calibration tool to get the accurate cable parameters.

8. Manually Set Frequency or Select the Preset Frequency

According to the demand, it is convenient for user to manually set or select the preset frequency.

9. Smith Phase Testing

10. Energy Saving, Environmental Protection and Human Interface Design

CAA-100A is low-power designing, has a high-capacity rechargeable lithium battery and AC adapter dual power supply with more than 8 hours of continuous battery operation. The shortcut keys can set up four display modes: normal, black and white, highlight and night vision for different ambient.

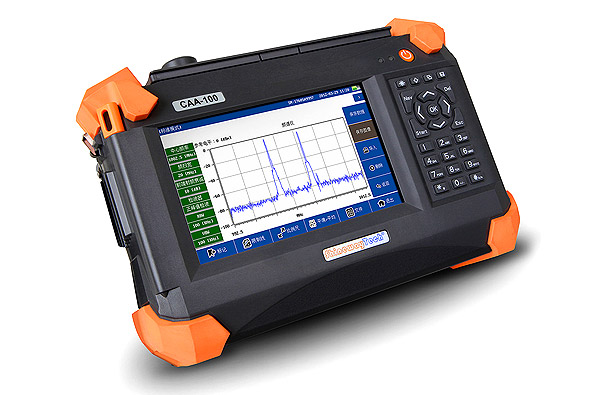

11. Spectrum Analysis Module

The spectrum analysis module is covered 300MHz-4GHz, 100 dB dynamic range, -130dBm/Hz DNAL. It can supply the spectrum measurement, field strength analysis, interference and other testing.

(1)   Spectrum Test Function

(2)   Antenna Test Function

WCDMA

CDMA

13. CAA Workbench PC Software

(1) Data Management Function

●Uploading and downloading files between the CAA-100A host and PC

●Interact files with PC, including open the local file and save the file to the local

●Support report print preview and print. Fully display the information such as company name, test parameters and measuring time etc.

(2) Application Tools Function

●Distance-To-Fault

●Transform into Smith Chart

●Calculator

●Edit Signal Standard

●Edit Cable Parameter

(3) Data Analysis

●Marker

●Limit line

●Scale

●Switching the Return Loss and VSWR

* Specifications subject to change without notice.

Order Information

Standard Package:

Instrument, Lithium Battery, AC Adapter, CD(PC Software, User Manual), Carrying Case, ECAL-- Electronic Calibrator, Cable (1.5m DC to 6GHz, N(m)-N(f), 50Ω), Adapter (N(m)-N(m), DC to 6GHz, 50Ω）

Optional (Module, Test Cable, Adapter, Calibrator)

Modules:

●  TPM Module (Optional)--RF Terminal Power Meter

●  DPM Module(Optional)—RF In Line Digital Power Meter

Test Cables:

●  1.5m, N(m)-N(f), DC to 6GHz, 50 Ohm

●  1.5m, N(m)-N(m), DC to 6GHz, 50 Ohm

●  1.5m, N(m)-7/16 DIN(f), DC to 6GHz, 50 Ohm

●  1.5m, N(m)-7/16 DIN(m), DC to 6GHz, 50 Ohm

●  3m, N(m)-N(f), DC to 6GHz, 50 Ohm

●  3m, N(m)-N(m), DC to 6GHz, 50 Ohm

Adapters:

●   SMA(m)-N(m), DC to 6GHz, 50 Ohm

●  SMA(f)-N(m), DC to 6GHz, 50 Ohm

●  SMA(m)-N(f), DC to 6GHz, 50 Ohm

●  SMA(f)-N(f), DC to 6GHz, 50 Ohm

●  BNC(f)-N(m), DC to 6GHz, 50 Ohm

●  7/16 DIN(f)-N(m), DC to 6GHz, 50 Ohm

●  7/16 DIN(f)-N(f), DC to 6GHz, 50 Ohm

●  7/16 DIN(m)-N(m), DC to 6GHz, 50 Ohm

●  7/16 DIN(m)-N(f), DC to 6GHz, 50 Ohm

●  7/16 DIN(m)-7/16DIN(m), DC to 6GHz, 50 Ohm

●  7/16 DIN(f)-7/16DIN(f), DC to 6GHz, 50 Ohm

●  N(m)-N(m), DC to 6GHz, 50 Ohm

●  N(f)-N(f), DC to 6GHz, 50 Ohm

●  N(m) 50Ohm – N(f) 75Ohm，DC to 3GHz

●  N(f) 50Ohm – N(m) 75Ohm，DC to 3GHz

Calibrators:

●   T-type Calibration Kits

Antenna:

●  880 MHz -- 960 MHz, N(m), 13 dBi, Yagi

●  1710 MHz -- 1990 MHz, N(m), 13 dBi, Yagi

●  1920 MHz -- 2170 MHz, N(m), 13 dBi, Yagi

●  2400 MHz -- 2500 MHz, N(m), 13 dBi, Yagi

●  890MHz-960MHz，1710MHz--1990MHz，N(m), 3dBi, 50Ω, Rod

●  1920 MHz -- 2170 MHz, N(m), 50 Ω, 3dBi,Rod

●  2400 MHz -- 2483 MHz, N(m), 50 Ω, 5dBi, Rod

●  890MHz-960MHz，1710MHz-1990Mhz，50Ω，N(m), 3.5dBi,Sucker

●  890MHz-960MHz，1710MHz-1990Mhz，50Ω，N(m), 3dBi, Sucker

●  2400MHz-2483MHz, 50Ω，N(m), 7dBi, Sucker

●  890MHz-960MHz， 50Ω，N(m), 6dBi, FRP

●  2400MHz-2483MHz, 50Ω，N(m), 10dBi, FRP

●  700 MHz -2.5 GHz, 50Ω，N(m), 4dBi, Logarithm

●  700 MHz - 4 GHz, 50Ω，N(m), 4dBi, Logarithm
