●The lowest cost fully functional OTDR
● Graphic display of test results
●Dynamic range up to 28dB
● Quick start: <5 seconds
●Perfect user interface, handheld & lightweight (1kg)
●Hotkeys: Easiest operation in the world, push-and-test
●1000 test records storage
●Bellcore file format (.sor)
● PC software for batch data processing
●USB/RS-232 data interface, driver-free
●Multiple languages: EN/DE/IT/FR/ES/PT/RU/KR/VN/CN etc.
●10 hours continuous operation with battery
●Dust-shock proof (2m drop test)
TraceManager Software

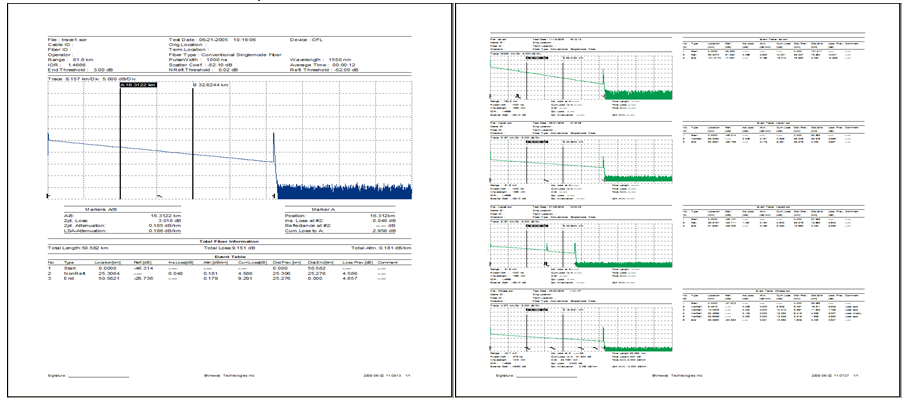

TraceManager software can display,analyze and edit trace files, generate and print comprehensive test and analysis reports in various forms.
●Trace viewing, events analysis
● Batch editing and flexible printing
● Trace viewing, events analysis
●Multi traces comparison
●Batch editing and flexible printing
●Bidirectional testing (Optional)
●CSV/ASCII report formats
|
Model |
palmOTDR-S120A |
palmOTDR-S120B |
|
Wavelength (±20nm) |
1310/1550 |
1310/1550 |
|
Dynamic Range |
24/24dB |
28/28dB |
|
Rang of Use |
Singlemode fiber |
Singlemode fiber |
|
Dead Zone |
EDZ: 5m |
EDZ: 2.5m; ADZ: 8m |
|
Connector |
FC/PC (Interchangeable SC, ST) |
FC/PC (Interchangeable SC, ST) |
|
Distance Measure Accuracy |
±(1m + 5×10-5×Distance + sampling space) |
±(1m + 5×10-5×Distance + sampling space) |
|
Attenuation Detect Accuracy |
±0.05 dB/ dB |
±0.05 dB/ dB |
|
Reflection Detect Accuracy |
±4 dB |
±4 dB |
|
Data Storage |
1000 records |
1000 records |
|
Connectivity |
RS-232/USB |
RS-232/USB |
|
Power Supply |
NiMH Rechargeable Battery/ AC Adapter |
NiMH Rechargeable Battery/ AC Adapter |
|
Battery Life |
10 hours continuous operation/ 20 hours standby |
10 hours continuous operation/ 20 hours standby |
|
Operating Temperature |
-10℃ ~ 50℃ |
-10℃ ~ 50℃ |
|
Storage Temperature |
-20℃ ~ 70℃ |
-20℃ ~ 70℃ |
|
Relative Humidity |
0 to 95% (non-condensing) |
0 to 95% (non-condensing) |
|
Weight |
1kg (2.2 lbs) |
1kg (2.2 lbs) |
|
Dimensions (H x W x T) |
220×110×70mm (8.7×4.3×2.7 inch) |
220×110×70mm (8.7×4.3×2.7 inch) |
Functional Module Specifications
|
Visible Fault Locator Module |
|
|
Wavelength (±20nm) |
650nm |
|
Output Power (dBm) |
≥-3 |
|
Max Measurement Range |
5 Km |
|
Optical Power Meter Module |
|
|
Calibrated Wavelength (nm) |
850,1300,1310,1490,1550,1625 |
|
Power Range (dBm) |
-70 ~ +6 (-60 ~ +6 @ 850nm) |
|
Detector Type |
InGaAs |
|
Display Resolution |
0.01dB |
|
Accuracy |
± 5% ± 0.01nW (±0.5dB@850nm) |
|
MOD Identification |
1K, 2K Hz |
* Specifications subject to change without notice
Ordering Information
Standard Package Includes:
Instrument, Rechargeable battery, AC adapter, TraceManager software CD, USB data transfer cable, Warranty card, CE certificate, Certificate of calibration
Optional information
1． palmOTDR-S120X-V with visual fault location function
2． palmOTDR-S120X-P with power meter function
