Hand-held High Performance OTDR


ShinewayTech® MTP-200X series is the compact multi-functional platform, with 8 inch high-resolution touch screen, which are specially designed for FTTx / WAN applications and can meet all test requirements of installers, contractors and service operators during network installation, construction, maintenance and troubleshooting.


It is convenient and accurate for auto/manual testing, multi-wavelength testing and multifunctional analysis.


Multi-Function and High Performance OTDR Testing

● Dynamic range up to 50dB

● Short zone: EDZ 0.8m, ADZ 4m

● Auto / manual test and analysis

● Multi-wavelength testing

● Visual fault locator function

● SOR, JPG and PDF file format

● Flexible file naming

● GR-196-CORE (.SOR) file format

● In-Line test and through splitter test (1625/1650nm with filter)

● OTDR module up to four wavelengths, SM/MM option

● Fault locating, fiber length / loss / return loss measurement, connector / splice / splitter / macro bend / fiber-end detection


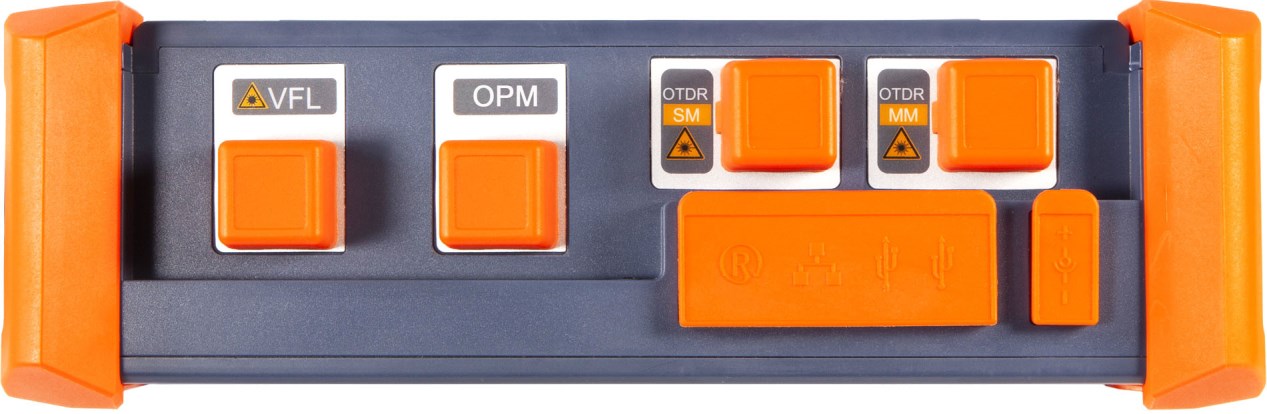

Optimized Platform Performance

● Lightweight, 1.5kg with battery

● 8 inch touch screen

● High strength protect horn

● Excellent Man-Machine interface

● Easy operation

● Optimized power management: 10 hours continuous operation

● Remote/local control by PC (Optional)



High Resolution 8 inch Color Touch Screen

● 8 inch touch screen

● Damp-dust-shock proof

● Quick response, clear display and convenient operation.

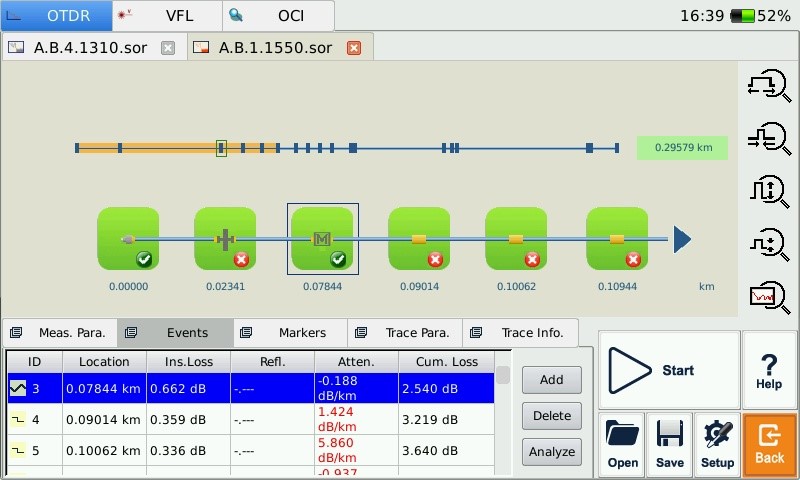

Link Image software helps technicians use an OTDR more effectively, without the need to understand or interpret OTDR results. It converts the graphic data points obtained from traditional single pulse trace into reflective or non-reflective icons which gives users a schematic view of the entire link.

● Icon-based fiber link view of all events

●Automatic pass/fail results

●Eliminates the need for OTDR expertise

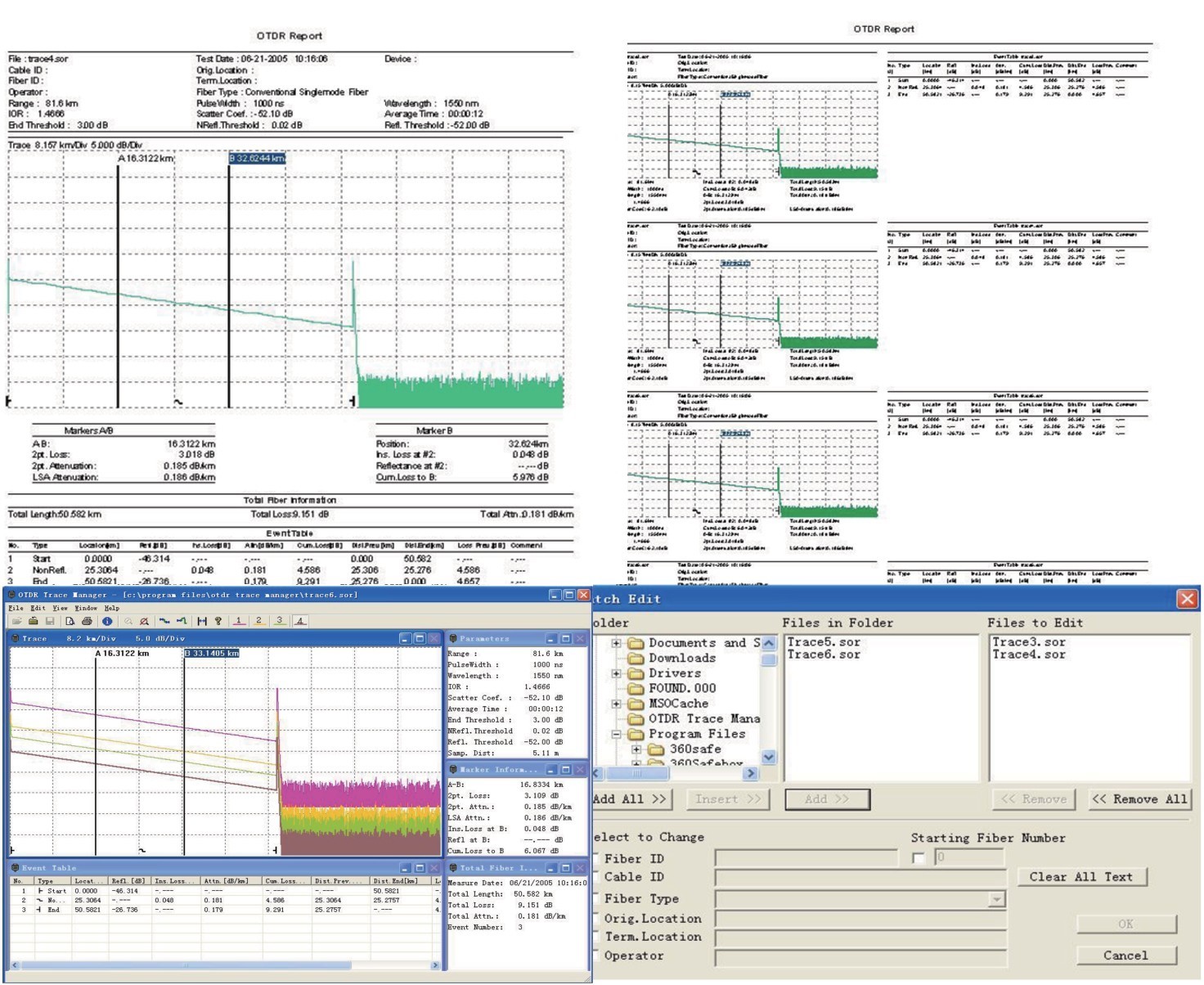

MTP Suite PC Software

●Multi traces analysis and comparison

●Batch editing and printing

●CSV report formats



Network Remote Control Module (Optional)

Remote control instrument operation

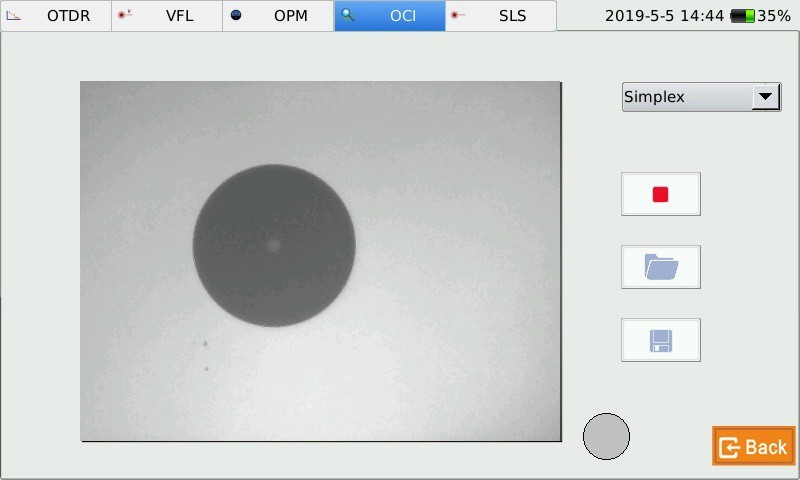

Optical Connector Inspector Module (Optional)

Focusing knob for fast focus

Eye-safe and clear video viewing

Interchangeable connector tips

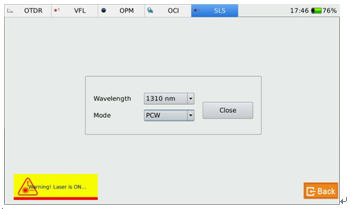

Stabilized Laser Source Module (Optional)

Wavelength same as the OTDR

High precision and easy operation

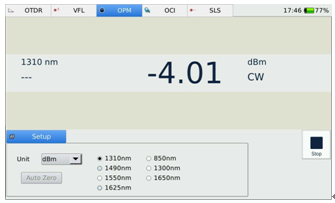

Optical Power Meter Module (Optional)

Multi-wavelength calibration

High precision

Convenient operation



FTTx / PON Networks

Local Area Networks (LAN)

Metropolitan Area Networks (MAN)

Long Haul Networks
