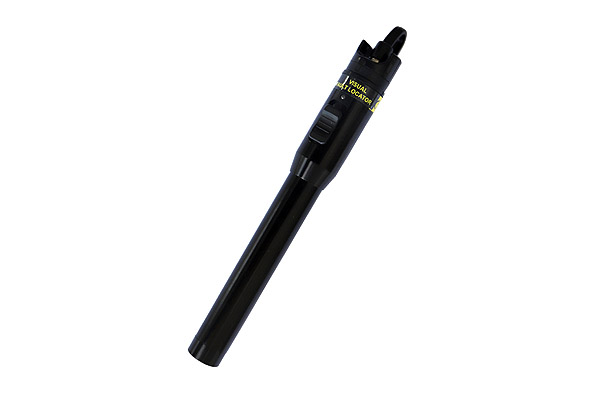

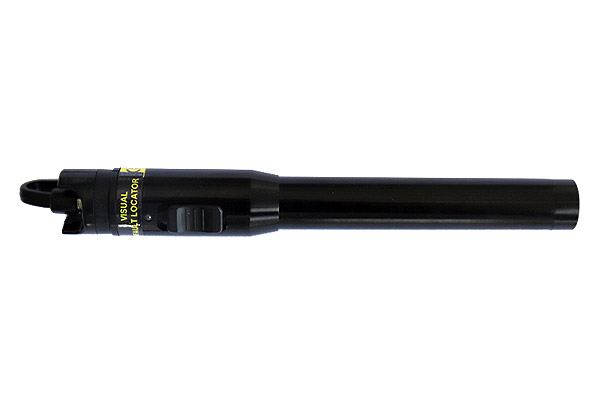

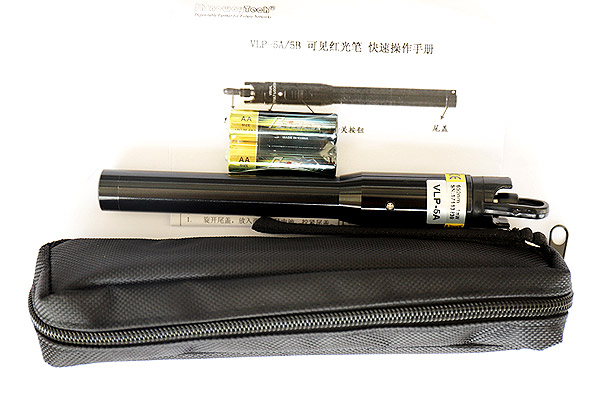

VLP-5 are visual fault locating tools for detecting and highlighting breaks, tight bends, splices or defective connectors on optic fibers. They are perfect complementary and handy tools to OTDRs for their visualized detecting method in close range like OTDR dead zones and high-fiber-count environments.
Features
●Pen-size & lightweight
● No warm-up, fast start-up
●Operation mode: CW/MOD
● ±8KV ESD protection
● CE certificates
●Solid: Dust-shock proof
|
Model |
VLP-5A |
VLP-5B |
VLP-5B-20 |
VLP-5B-30 |
VLP-5B-50 |
|
Output Power |
1mW |
10mW |
20mW |
30mW |
50mW |
|
Laser Type |
FP-LD |
||||
|
Wavelength |
650nm±10nm |
||||
|
Work Mode |
CW or Modulated |
||||
|
Output Connector |
2.5mm universal adapter (SC, ST, FC); optional 1.25mm adapter |
||||
|
Modulation Frequency |
2~3Hz |
||||
|
Power Supply |
1.5V A Alkaline Battery ×2 |
||||
|
Battery Life |
≥50hours |
≥40hours |
≥30hours |
≥20hours |
≥10hours |
|
Working Temperature |
-10 ~ 45℃ |
||||
|
Storage Temperature |
-40 ~70℃ |
||||
|
Relative Humidity |
0 ~ 95% (Non-condensing) |
||||
|
Weight |
120g (excluding battery) |
||||
|
Size |
180× Ф15mm |
||||
* Specifications subject to change without notice.
Options
AC-VLP-5-CA 2.5mm to 1.25mm universal connector adaptor (LC/MU) for VLP-5
