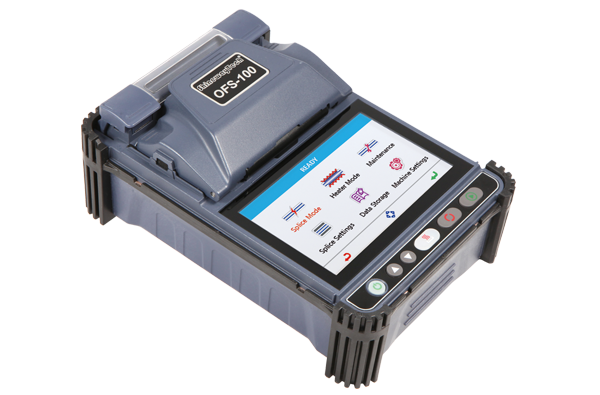

OFS-100  Clad Alignment Splicer



OFS-100 adopts high-speed image processing technology and 4-motor precise positioning technology, which help realize fast automatic fiber splice and high-quality splice performance. The perfect combination of 5-inch LCD and dual-CMOS, X/Y and X+Y display give full picture of fiber splice at all stages. It supports SMF (G.652), MMF (G.651), DSF (G.653), NZ-DSF (G.655), BIF (G.657), CSF (G.654), EDF splicing.

The compact body also supports long-time outdoor operation, making it a favorable tool in optical fiber installation, maintenance in field of Telecommunications, Broadcasting, Railway, Power, Military, as well as scientific research.



Features

●Compact and light: 1.3Kg with battery

●4 motors clad alignment for precise high-quality splicing SMF (G.652), MMF (G.651), DSF (G.653), NZ-DSF (G.655), BIF (G.657), CSF (G.654), EDF splicing

●One-fit-all fiber holders for bare fiber, pigtails, patch cords and FTTH indoor fiber splicing

●Auto fiber end-face inspection, auto arc position adjustment, splice loss calculation, temperature and pressure compensation

●Auto splicing

●Splicing≤6s, heating≤18s (time and power adjustable)

●Arc counter prompts electrode change upon usage

●Auto arc optimization

●Auto heating

●X/Y and X+Y display for clear fiber core image

●Quick mount battery with power indicator

●Built-in illumination

●Wind – dust – rain - shock proof

●Graphical user interface for easy understanding and operation

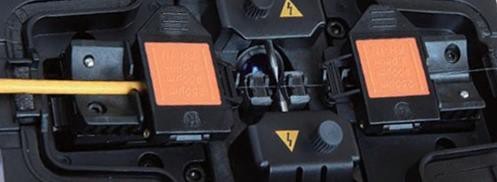

Equipped with removable universal fiber holders (250μm/900μm/patch cord/FTTx indoor fiber etc.)
