OFS-95S Optical Fusion Splicer



OFS-95S Fiber Optic Fusion Splicer is designed as a highly flexible instrument with 6-motor precise micron level control and splice loss lower than 0.02dB for G.652 fiber. Equipped with removable universal fiber holders (250μm/900μm/patch cord/FTTx indoor fiber etc.), SOC holder and internal thermometer / barometer, OFS-95S can be deployed anywhere. Fast 7s7 second startup, 9s9 second splicing and automatic heating features enable the splicer to be an efficient tool for any large volume splicing operation during fiber installation and maintenance.



Features

●Compact and light: 1.9Kg with battery

●6 motors core alignment for precise high-quality splicing

●SMF (G.652), MMF (G.651), DSF (G.653), NZ-DSF (G.655), BIF (G.657), EDF splicing

●One-fit-all fiber holders for bare fiber, pigtails, patch cords and FTTH indoor fiber splicing

●Auto fiber end-face inspection, auto arc position adjustment, splice loss calculation, temperature and pressure compensation

●Auto and manual splicing

Splicing≤9 second, heating≤25 second (time and power adjustable)



●Arc counter prompts electrode change upon usage

Auto arc optimization

●Auto heating

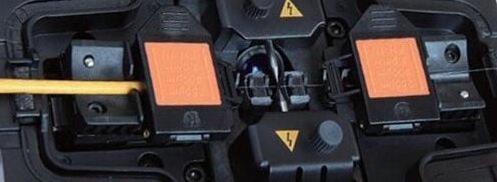

●Dual V-groove for perfect fiber alignment

X/Y and X+Y display for clear fiber core image

●Quick mount battery with power indicator, housed in dust and water splash proof battery dock

DC output to power external devices

Built-in illumination

Wind – dust – rain - shock proof

●Auto display flip

●Graphical user interface for easy understanding and operation

●Multi-language support

●With password control function
