Powerful Tool for CWDM Installation, Maintenance & Troubleshooting
●Clear TFT LCD display (320×240)
●18-channel measurement:
●Model OCC-50B, 1271-1611nm
● 8-channel measurement:
●Model OCC-50A, 1471-1611nm
●Result display in histogram and list
●Applicable to normal optical power measurement
● Internal clock & fiber S/N editable
●User definable threshold setting
●Data Transfer to PC via USB
●No warm-up, quick start
●Backlight
● 10 hours continuous operation
●Pocketsize, lightweight and easy-to-use
●CE, FCC certificates
OCC-50 Handheld CWDM Optical Channel Checker is specially designed for CWDM installation, maintenance and troubleshooting, which allows you to measure and monitor power values of up to 18 CWDM channels. OCC-50 can replace high-cost Spectrometers and conduct quick and reliable measurements in all environments. Thanks to its light, compact and sturdy design, OCC-50 is the ideal tool for CWDM installation and maintenance technicians.

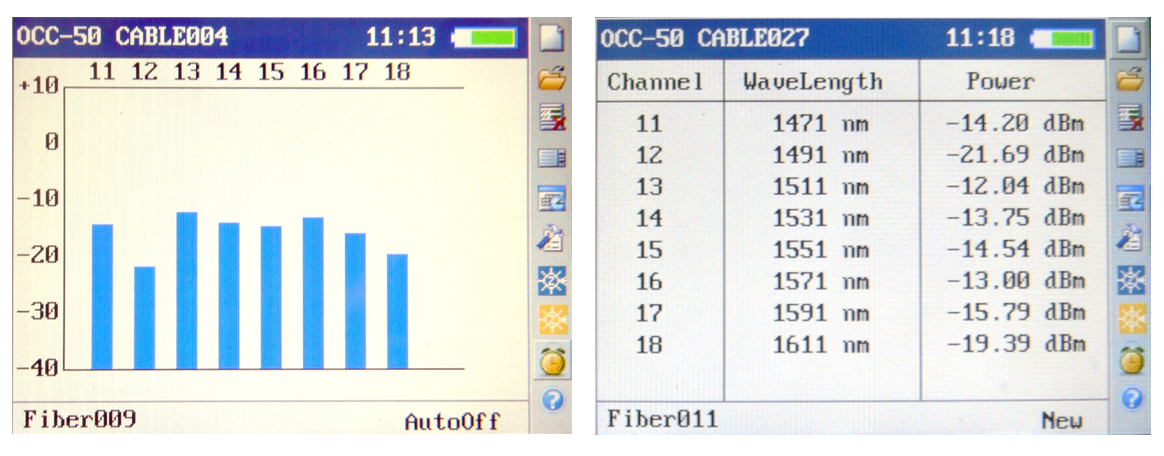

Result display in histogram and list
Straightforward result display for easy understanding.
Internal clock & fiber S/N editable
Internal clock enables OCC-50 to save test data with time and editable fiber SN information for convenient archiving and editing.
|
Model |
OCC-50A |
OCC-50B |
|
CWDM Module |
||
|
Wavelength (nm) |
1471~1611 |
1271~ 1611 |
|
Channel Number |
8 |
18 |
|
Power Range (dBm) |
-50 ~ +10 |
|
|
Channel Spacing |
20nm |
|
|
Central Wavelength |
ITU |
|
|
Channel Band-pass |
ITU±6.5nm |
|
|
Channel Power Resolution |
±0.01 dB |
|
|
Channel Power Accuracy |
±0.5 dB |
|
|
Channel Power Repeatability |
±0.5 dB |
|
|
Maximum Input Power |
13 dBm |
|
|
ORL |
>45 dB |
|
|
Measurement Unit |
W/mW/μW/nW/pW/dBm/dB (REF) |
|
|
Data Storage |
1000 sets |
|
|
Connectivity |
USB |
|
|
Detector Type |
InGaAs |
|
|
Application Range |
Singlemode Fiber |
|
|
Connector |
FC/PC (Interchangeable SC/ST) |
|
|
Power Saving |
Auto-off after 5 minute idle |
|
|
OPM Module |
||
|
Calibrated Wavelength (nm) |
850,1300,1310,1490,1550,1625 |
|
|
Power Range (dBm)(1) |
-70 ~ +10 |
|
|
Accuracy |
± 5% ± 0.01nW(±0.5 dB@850nm) |
|
|
Resolution |
0.01 dB |
|
|
General Specifications |
||
|
Power Supply |
NiMH Rechargeable Battery / AC Power Adaptor |
|
|
Battery Life |
Continuous operation ≥10 hours |
|
|
Weight |
1kg (2.2 lbs) |
|
|
Dimensions (H × W × T) |
220×110×70mm (8.7×4.3×2.7 inch) |
|
Note: (1) At 850nm, the lower limit of measurement range is -60 dBm
* Specifications subject to change without notice
Ordering Information
Standard Package:
Instrument, NiMH battery, AC adaptor, USB data cable, OCC software CD, Soft carrying case, Warranty card, Certificate of calibration, User’s guide.
