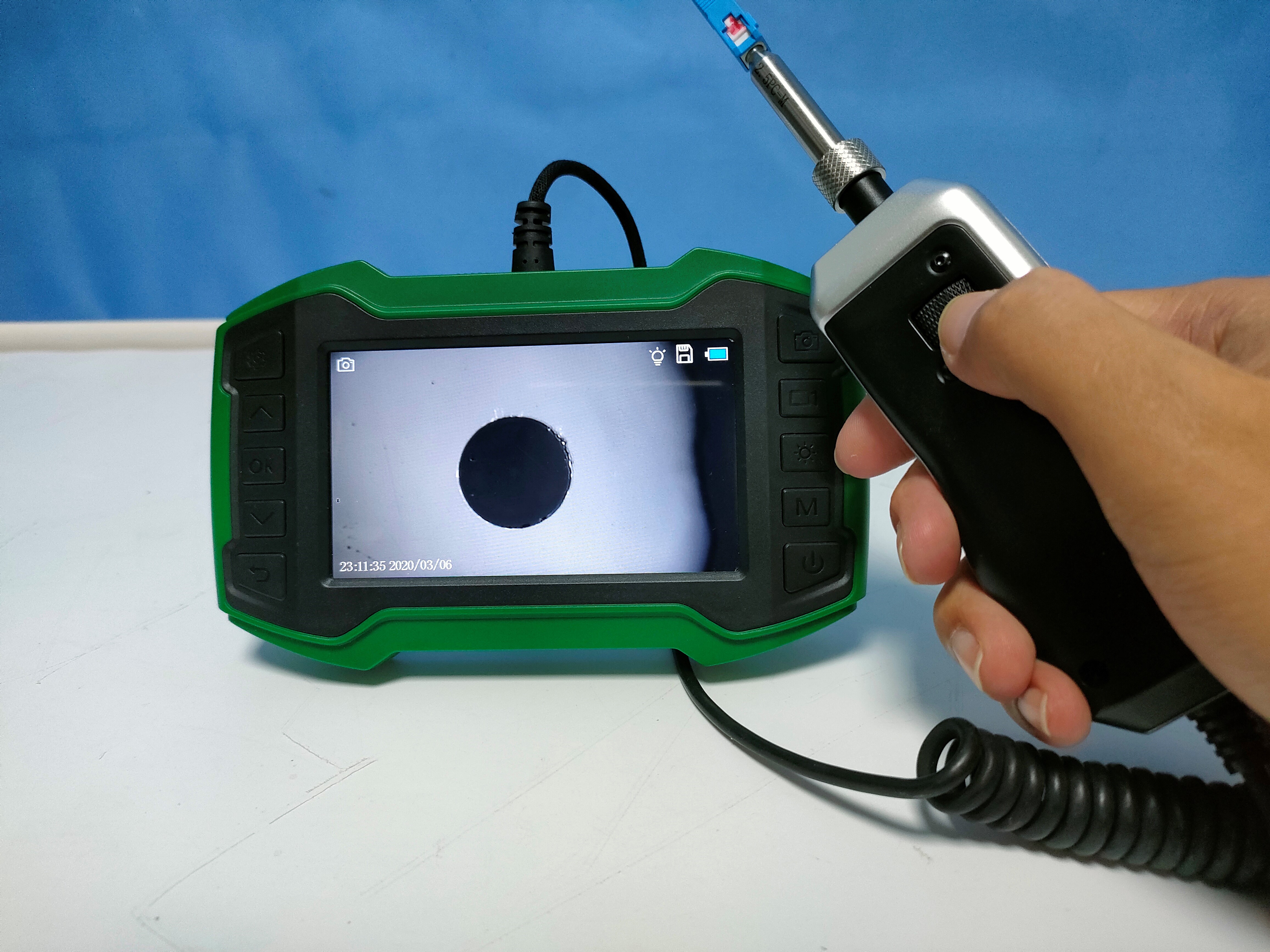

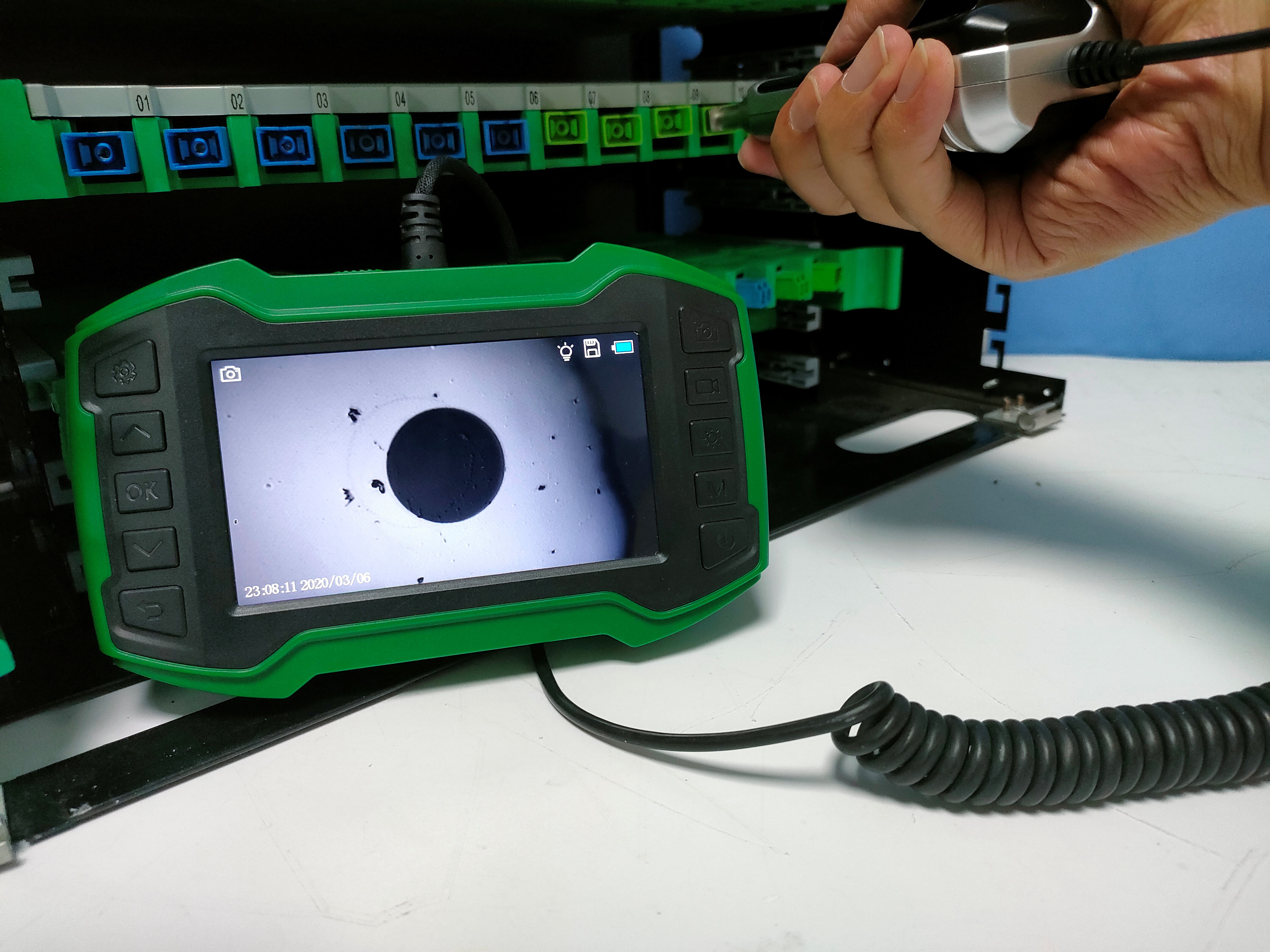

OCI-20BN Optical Connector Inspector is the new upgraded digital video inspection probe equipped with a 4.5-inch video display. The display can take fiber photos, videos on the testing spot and store data for easy transfer via SD card or USB connection. OCI-20BN probe can also be directly connected with laptops/PCs, OTDR with one universal USB cable, which is a full-functional all-in-one optical fiber end face inspection microscope.
OCI-20BN can also be equipped with optional pass/fail analysis software according to IEC 61300-3-35 standard or user-defined criteria, and have fiber end face verified with pass/fail judgment.
Features
●400X, less than 1 µm resolution for clear image
●4.5 inch high resolution display to capture screen and record video
●Connects with multiple devices including laptops/PCs and OTDR via USB Cable
●50+ tips for comprehensive support for all connector types used in today’s network
Specifications
|
Probe |
|
|
Magnification |
400X |
|
Resolution |
<1μm |
|
View of Field |
X: 480μm, Y: 270μm |
|
Focus |
Manual Adjustment |
|
Light Source |
Blue LED |
|
Focus Speed |
3-5s |
|
Alignment |
>98% |
|
Power Source |
USB Port |
|
Operating Systems |
Windows 7, 8, 10 |
|
Size |
180*22*56mm |
|
Weight |
110g |
|
Display |
|
|
Display |
4.5-inch LCD, 1920*1080 pixels |
|
Core Size |
28 mm |
|
SD Card |
8G |
|
Power Source |
Internal Li-ion Battery (3400mAh), USB Power |
|
Battery Life |
4 hours |
|
Size |
163 x 100 x 35mm |
|
Weight |
200g |
Standard Configuration
|
Items |
Description |
Quantity |
|
Probe |
To test the fiber end face from patch cords /bulkhead PC/APC connectors |
1pcs |
|
Display |
To display end-face image |
1pcs |
|
Tips |
SC-PC-F, FC-PC-F, LC-PC-F, 2.5PC-M |
1 pcs/type |
|
Others |
FiberFaceViewer Software 1pcs, Bag 1pcs, 8G SD card, USB cable 1pcs |
|
* Specifications subject to change without notice
