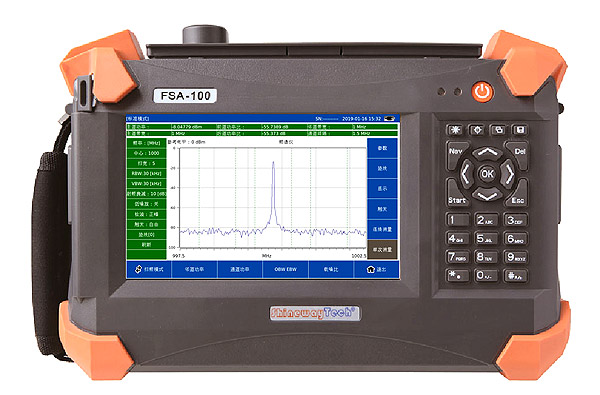

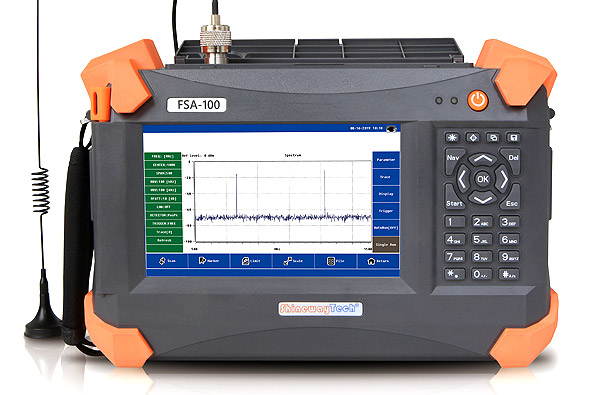

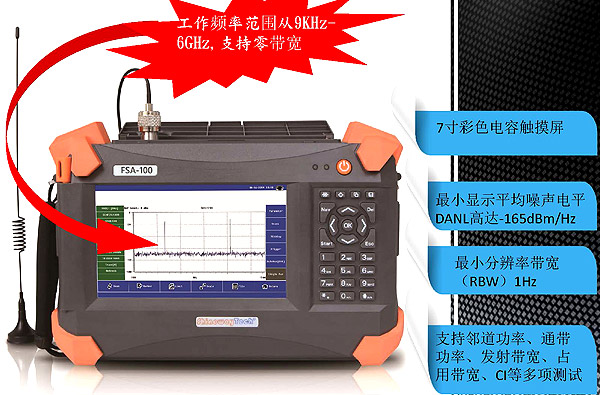

FSA-100 Series Spectrum Analyzer


●All-digital IF technology

●Frequency range : 9KHz to 6GHz

●Minimum display noise level (DANL) up to -165dBm/Hz

●Power dynamic range up to 100dB and maximum continuous input power >= 27dBm

●SSB phase noise -90dBc/Hz @10kHz offset (typical)

●Minimum RBW is 1Hz

●RF Attenuator Range : 0~55dB, 5dB step

●Support ACPR, channel power, transmit bandwidth, occupied bandwidth, C/I measurement

●Support AM, FM, FFT, IQ demodulation at zero bandwidth

●7 inch color touch screen LCD, high resolution 1024*600

●Strong file management ability: batch edit/delete/filter supported

●Support normal, black and white, night vision, highlighting and other display modes


●More than 4.5 hours working time

  ShinewayTech® FSA-100 series 6GHz spectrum analyzer are widely used in 2G/3G/4G/5G etc. FSA-100 series have the industry's rare high receiver sensitivity performance with a minimum display average noise level of -165dBm/Hz. Power measurement dynamic range up to 100dB, maximum RF input power exceeds 27dBm. FSA-100 series are equipped with a 7" ultra-large capacitive touch screen (resolution 1024*600) for an excellent user experience.


The FSA-100 series combine high performance, high portability and maneuverability with excellent engineering design, making it small and light in weight. At the same time, with more than 4.5 hours of working time, it can meet all kinds of complex environment signal measurements. The FSA-100 series is an essential measurement tool for the construction, upgrading and maintenance of next-generation wireless networks.

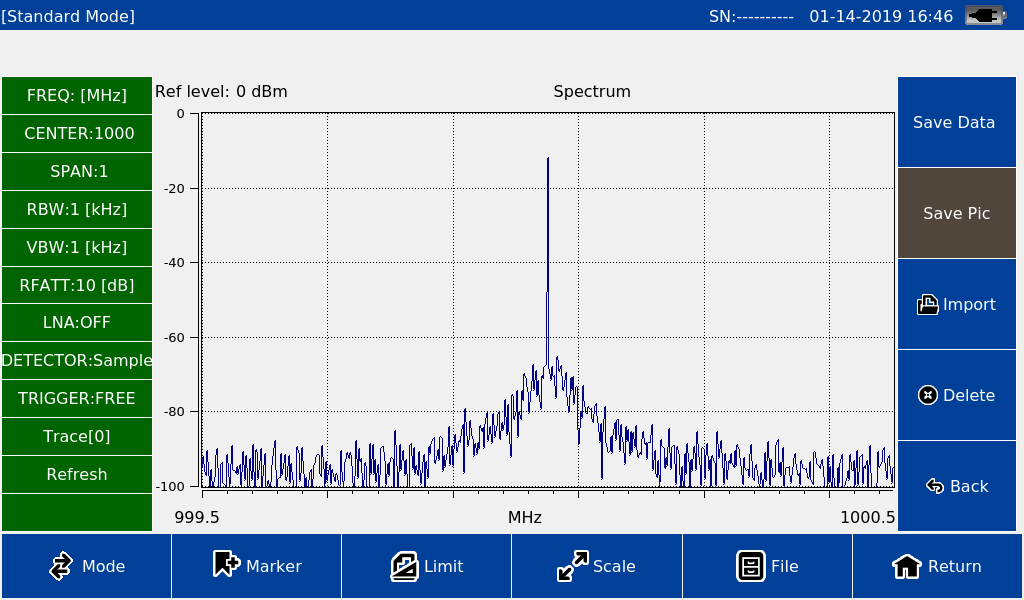

Measurement (Sweep Mode)

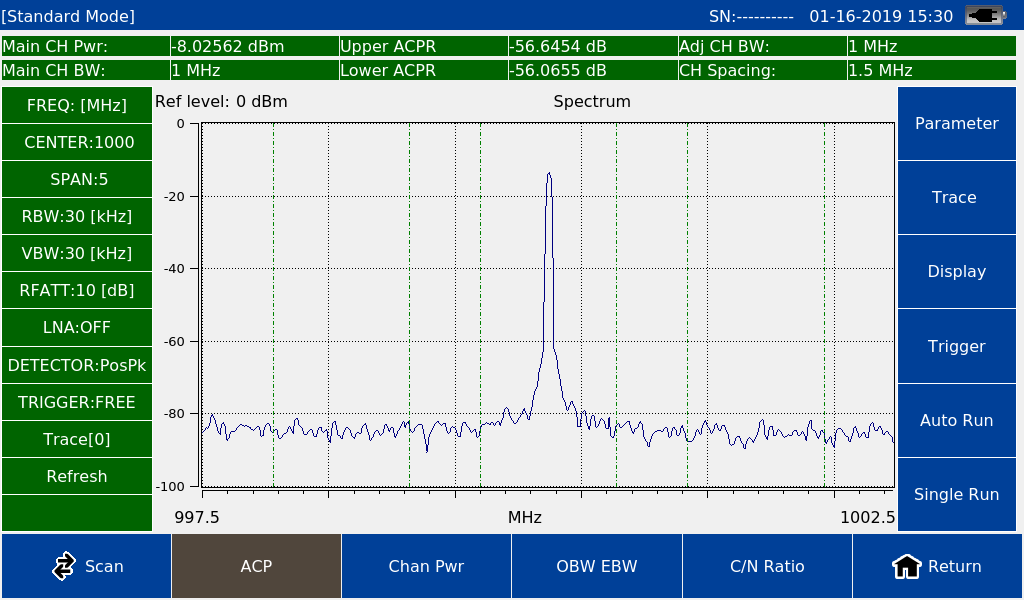

Measurement (ACPR)
